MOP-TFT480272-43G
4.3" TFT 480x272 24bit RGB Oversize Mountable Capacitive Touch Screen
Canada Day Holiday Notice
Matrix Orbital will be closed from July 1st to July 5th, 2020 for Canada Day celebrations.
No shipping or processing of orders will take place during this time.
Normal business will resume on Monday July 6th, 2020.
Matrix Orbital will be closed from July 1st to July 5th, 2020 for Canada Day celebrations.
No shipping or processing of orders will take place during this time.
Normal business will resume on Monday July 6th, 2020.
Backorder
Click Image for Gallery

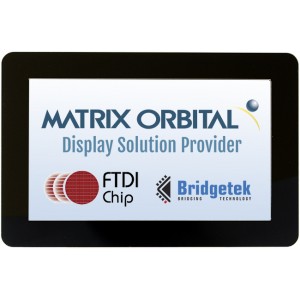

The MOP-TFT480272-43G is 480x272 pixel, 4.3" parallel 24bit RGB interface TFT.
This low cost display solution utilizes an industry standard RGB communication interface for simple integration into a wide variety of new and existing applications. The Light Emitting Diode backlight with PWM controlled brightness allows the MOP Thin Film Transistor line to offer a professional display solution for any project.
- Oversized Mountable Capacitive Touch Screen
- 3M 200MP adhesives
- Fast and easy development
- Designed in CANADA
- Long life cycle
- Backed by Matrix Orbital's decades of research and development
| Module | |
| Family/Series | Parallel Display |
| Module Width (mm) | 120.38 |
| Module Height (mm) | 79.20 |
| Screen | |
| Display Type | TFT - Color |
| Backlight Type | LED |
| Viewing Area Width (mm) | 98.7 |
| Viewing Area Height (mm) | 57.5 |
| Active Area Width (mm) | 95.04 |
| Active Area Height (mm) | 53.86 |
| Resolution Width (Pixels) | 480 |
| Resolution Height (Pixels) | 272 |
| Pixel Pitch Width (mm) | 0.198 |
| Pixel Pitch Height (mm) | 0.198 |
| Font | Multilingual |
| Viewing Direction | Bottom, Top |
| Viewing Angle | 140 |
| HMI | |
| Touchscreen | Resistive, Capacitive, None |
| Keypad | None |
| Keys | None |
| Haptic Feedback | None |
| Audio Feedback | None |
| GPO's | None |
| Advanced GPO's | None |
| DOW | None |
| Integrated LED's | None |
| Hardness | 6H (Cap) |
| Electrical | |
| Interface | Parallel |
| Command Protocol | Display Driver |
| Controller | HX8264+HX8664 |
| Negative Voltage | None |
| Backlight Driver | None |
| Minimum Voltage (Vdc) | 3.3 |
| Typical Voltage (Vdc) | 3.3 |
| Maximum Voltage (Vdc) | 3.3 |
| Header | None |
| Environmental | |
| Min. Operating Temp. (°C) | -20 |
| Max. Operating Temp. (°C) | 70 |
| Min. Storage Temp. (°C) | -30 |
| Max. Storage Temp. (°C) | 80 |
