GTT GUI Designer Software Suite

Posted by John 24/04/2017 0 Comment(s) App Notes,

Matrix Orbital’s GTT HMI GUI Software Designer suite is a free software package designed to create impressive GUI and HMI overlays quickly and easily. The software seamlessly integrates with our GTT Series of intelligent displays to provide fast development for TFT's. This, feature rich, software has everything you need to customize the look and feel of your application. Choose from several built-in themes, numerous styles of buttons, sliders, toggles, gauges and other objects, or create your own for the ultimate in tailor-made interfaces.

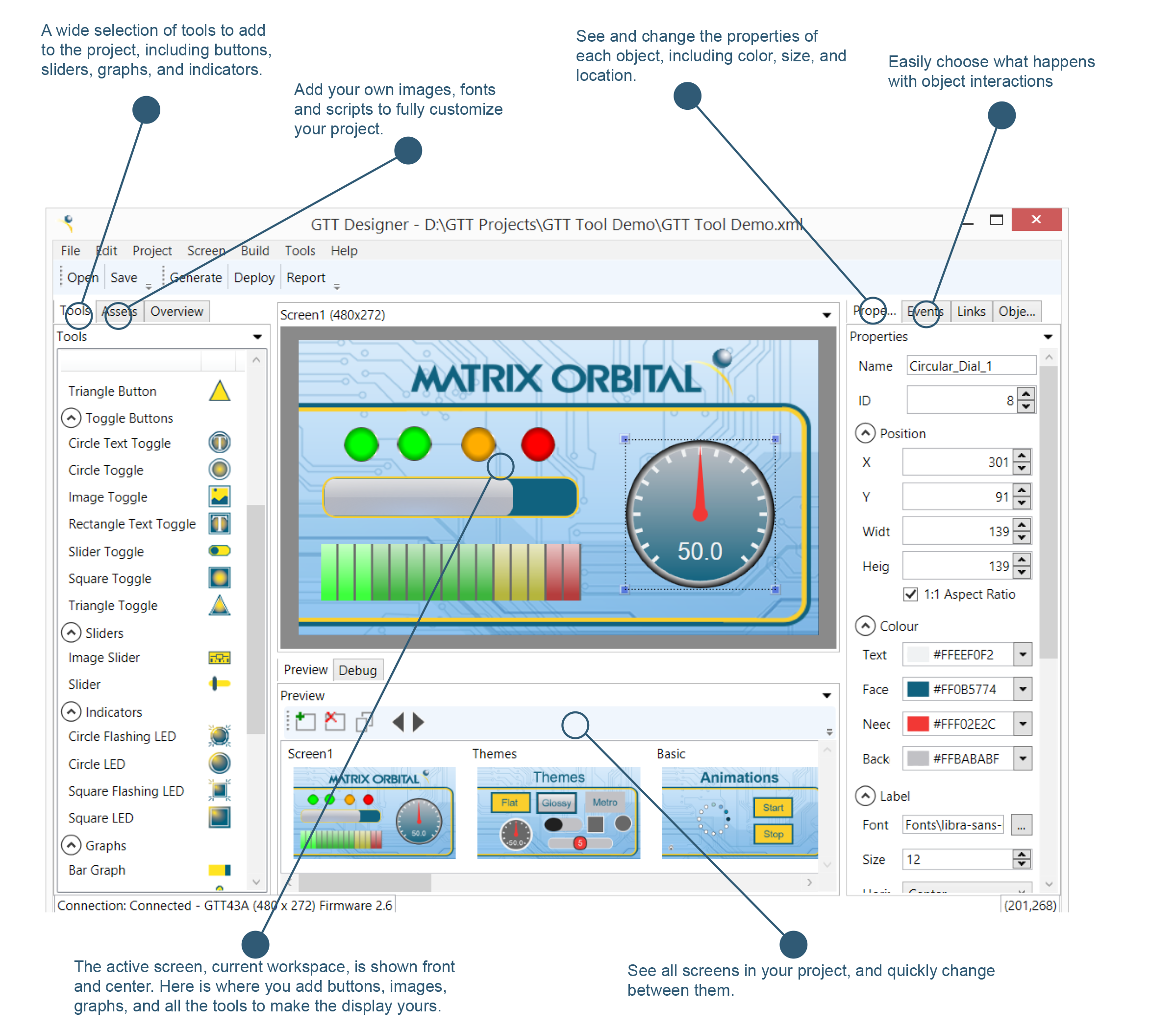

GTT Designer Software GTT Designer features numbers tools and widgets, so you can create custom interfaces and screens. The featured tools include:



Add LED indicators to your screens, with several shapes, and in any colour you want.



Add images to your display. From custom graphics to high resolution photos, the possibilities are endless! GTT Designer can use all the most common image formats, including .jpg, .png, .tif and .bmp.



Create graphs to show data in real time. With the multiple GPO pins on the GTT series, you can attach a wide variety of sensors, and easily show live data.



With the large number of toggles included in GTT Designer, you have gorgeous options to change the state of outputs. Or, with the image toggle tool, you can create your own toggles for full customization.



With the large number of toggles included in GTT Designer, you have gorgeous options to change the state of outputs. Or, with the image toggle tool, you can create your own toggles for full customization.



GaugeGauges can display values in real time from any number of sources.
