DD-DB1-AV202C
DD-DB1-AV202C
Discontinued
Click Image for Gallery

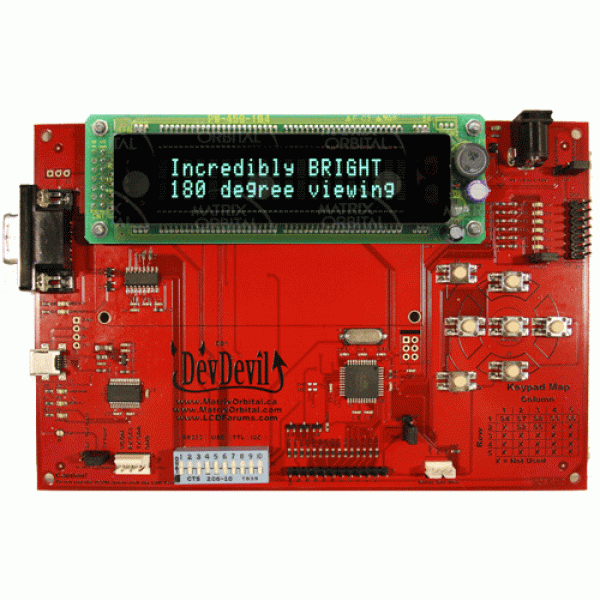

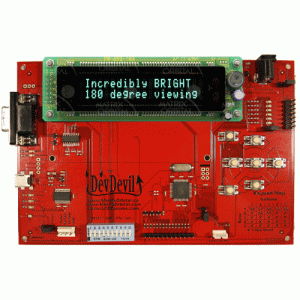

Development Made Easy! The Matrix Orbital DevDevil is a product development board which provides all of the functionality of an alphanumeric display in a project development friendly package. The DevDevil opens the door to a world of exciting display possibilities!
- Package includes:
- One 2 row by 20 column character VFD display (Black Background/Blue-Green Text)
- Mini-USB onboard connector with USB cable
- 6 general purpose outputs (GPOs)
- 3 LED GPO’s on board
- Dallas one wire support
- 7 physical buttons
- 5 x 5 keypad input found on their production counterparts
- RS232, USB, TTL, and I2C protocols offered through a dynamic switch block, standard headers for all protocols are offered on the board, as well as a variety of input power options.
- Powering up the DevDevil can be as easy as connecting to the mini-USB connector on board. Alternate power options include an AC adapter, power through the DB9 header, and 4 pin data/power input.
- VFD filters are optional accessory, available in Grey, Blue, Red and Green
This part is out of stock.
| Module | |
| Family/Series | DevDevil |
| Module Width (mm) | 167.64 |
| Module Height (mm) | 111.76 |
| Screen | |
| Display Type | Character VFD |
| Viewing Area Width (mm) | 96 |
| Viewing Area Height (mm) | 24 |
| Active Area Width (mm) | 70.8 |
| Active Area Height (mm) | 11.6 |
| Resolution Width (Pixels) | 100 |
| Resolution Height (Pixels) | 16 |
| Pixel Pitch Width (mm) | 0.5 |
| Pixel Pitch Height (mm) | 0.7 |
| Pixel Width (mm) | 0.4 |
| Pixel Height (mm) | 0.5 |
| Character Columns | 20 |
| Character Rows | 2 |
| Character Pitch Width (mm) | 3.6 |
| Character Pitch Height (mm) | 6.1 |
| Character Width (mm) | 2.4 |
| Character Height (mm) | 4.7 |
| Font | Japanese |
| Viewing Direction | Any |
| Viewing Angle | 60 |
| HMI | |
| Touchscreen | None |
| Keypad | 7 |
| Keys | 25 |
| Haptic Feedback | None |
| Audio Feedback | None |
| GPO's | 6 |
| Advanced GPO's | None |
| DOW | 1 |
| Integrated LED's | None |
| Electrical | |
| Interface | RS232, I2C, USB |
| Command Protocol | Matrix Orbital |
| Controller | ATMega164P |
| Negative Voltage | Inegrated |
| Minimum Voltage (Vdc) | 5 |
| Typical Voltage (Vdc) | 5, 9-15 |
| Maximum Voltage (Vdc) | 15 |
| Header | Standard |
| Environmental | |
| Min. Operating Temp. (°C) | -20 |
| Max. Operating Temp. (°C) | 70 |
| Min. Storage Temp. (°C) | -40 |
| Max. Storage Temp. (°C) | 80 |
Application Notes | |||||||
|---|---|---|---|---|---|---|---|
| File Name | Revision | Size | |||||
| File Name | Revision | Size | |||||
| Application Notes |
 eGTT50-TPR Drawing (Rev 1.0).pdf | 327.29KiB | DescriptionTPN: non touch, TPR: resistive touch, TPC: capacitive touch | ||||
| Application Notes | Arduino EVE UNO Example Code | -1B | DescriptionWritten for an EVE2 or EVE3 or EVE4 running on an Arduino UNO. | ||||
| Application Notes | ESP32 EVE Example Code | -1B | DescriptionExample code for the EVE on a ESP with the WEMOS D1 mini. Most models of the ESP32/ESP8266 should work, but are untested. | ||||
Documents | |||||||
|---|---|---|---|---|---|---|---|
| File Name | Revision | Size | |||||
| File Name | Revision | Size | |||||
| End Of Life Notice |
DevDevil 20x2 and 20x4 | 204.74KiB | DescriptionEnd of Life of the DevDevil Development Board Series - All Options - October 21, 2013 NotesProducts Affected:
ChangelogReport Date: October 21, 2013 | ||||
