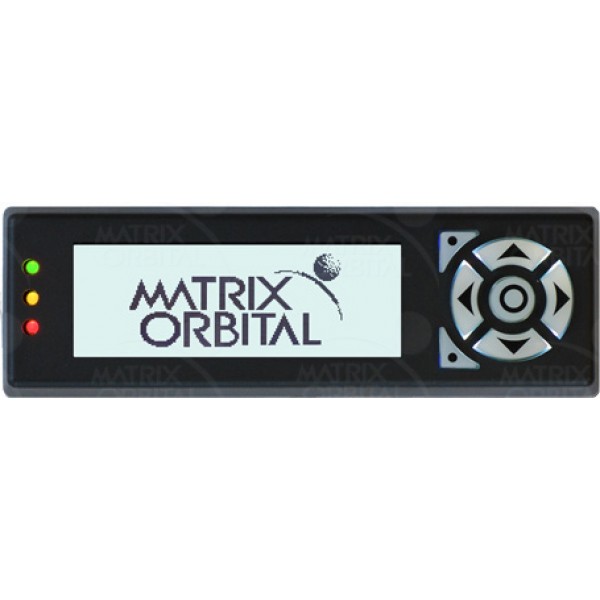

The EGLK19264-7T is an external 192x64 Intelligent Graphic LCD display in a metal or ABS enclosure. Engineered to quickly and easily add an elegant graphic HMI to any application. Multiple communication protocols such as Serial RS232, TTL, I2C, USB and RS422 communication models allow the EGLK19264-7T Graphic LCD to be connected to a wide variety of host controllers.


Our Graphic LCD provides you with a cost-effective industrial HMI user interface solution for that great product/project you are developing. On board memory for Fonts and Bitmaps! This graphic LCD displays graphics and text in any font, style, justification and language, all with the convenience of a 7 key backlit tactile keypad will allow fast development for any application.

  • 192x64 Graphic LCD 1U HMI
  • ABS Plastic external enclosure with screw mounting
  • Metal external enclosure with mounting brackets
  • Available Interfaces: Serial RS232, TTL, I2C, and USB
  • 7 key backlit tactile keypad
  • 256KB of customizable fonts and bitmaps to enhance the graphical user experience
  • Programmable to display any language
  • 3 dual colour indication status LEDs
  • Three available voltage options: low power 3.3V, 5V, and Industrial 9-35V (12V, 24V)
  • Field upgradable firmware
  • Piezo Buzzer to provide audio feedback
  • Software controlled contrast and brightness with configurable time-out setting up to 90 minutes
  • Built in Horizontal or Vertical bar graphs
  • Extended temperature available for extreme environments of -20C to 70C
  • Hardware flow control
  • Fast and easy development
  • Designed, supported and Made in CANADA
  • Long life cycle
  • Backed my Matrix Orbital``s decades of research and development

NOTE: The RS232/I2C/TTL versions do not come with a communication/power cable. Please review the technical manual for the communication/power connector pinout.


Without enclosure as GLK19264-7T-1U

1U 5.25" PC Bay Insert BGK19264A-BK




Module
Family/Series External Display
Screen
Display Type Graphic LCD
Backlight Type LED
Viewing Area Width (mm) 96
Viewing Area Height (mm) 28.4
Active Area Width (mm) 74.85
Active Area Height (mm) 24.93
Resolution Width (Pixels) 192
Resolution Height (Pixels) 64
Pixel Pitch Width (mm) 0.39
Pixel Pitch Height (mm) 0.39
Pixel Width (mm) 0.36
Pixel Height (mm) 0.36
Font Multilingual
Viewing Direction Top
Viewing Angle 60
HMI
Touchscreen None
Keypad 7
Haptic Feedback None
Audio Feedback Piezo Buzzer
GPO's 6
Advanced GPO's None
DOW Optional, 1
Integrated LED's 3
Enclosure Metal, Plastic
Graphic Memory 256kB
Electrical
Interface RS232, TTL, I2C
Command Protocol Matrix Orbital
Controller LPC1752
Negative Voltage Integrated
Backlight Driver Integrated
Minimum Voltage (Vdc) 3.3
Typical Voltage (Vdc) 3.3, 5, 9-35
Maximum Voltage (Vdc) 35
Header Terminal Block
Environmental
Min. Operating Temp. (°C) 0, -20
Max. Operating Temp. (°C) 50, 70
Min. Storage Temp. (°C) -30, -10
Max. Storage Temp. (°C) 60, 80

Application Notes

  File Name Revision Size
  File Name Revision Size
Application Notes  2D Drawing for EVE2-38G-TPC 1.1 3.09MiB

Description

A .dwg style Drawing for the Capacitive Touch (TPC) variant of the EVE2-38G.

Application Notes  PDF Drawing for EVE2-43G-TPT PCB Revision 1.0. 225.25KiB

Description

PDF style Drawing for EVE2-43G-TPC PCB Revision 1.0.

Application Notes  2D Drawing for EVE2-43G-TPT PCB Revision 1.0. 2.8MiB

Description

DWG style Drawing for EVE2-43G-TPC PCB Revision 1.0.

Downloads

  File Name Revision Size
  File Name Revision Size
Graphic Fonts  Small Filled Spanish 21.08KiB

Description

\"Small Filled Spanish\" is the 6 x 7 pixel monospaced font which is has Spanish characters. It allows 40 characters per line and 8 lines of text on a 240 x 64 pixel display. Set font metrics to: character spacing = 0; line spacing = 1; left margin = 0; right margin =

Graphic Fonts  Recta 13.75KiB

Description

\"Recta\" is a fairly small proportional font. At 11x11 pixels, it is about as small as you can make a font and still have proper looking characters - especially lower case characters with \"decenders\" like \'j\' and \'g\'. The font is clean and readable and allows about 40 characters per line and 5 lines on a 240x64 display. Set font metrics to: character spacing = 1; line spacing = 1; left margin = 0; right margin = 0

Graphic Software  MOGD# Software 1.34MiB

Description

This updated program is the new tool kit for all our graphic displays. It lets you upload fonts and bitmaps, set fonts and font metrics. As well, allows you test all the different features of the display. In addition this program allows you to create new fonts from existing fonts in your windows library. As well as convert graphic files, to a format that you can upload to the displays. This version supports all revisions of most graphic displays, including the following:

GLK12232A-25-SM, GLT12232A, GLK12232-25, GLK19264A-7T-1U, GLK24064R-25-1U, GLT24064R-1U, GLK24064-25, GLT24064, GLK240128-25, and GLT240128

Windows Installation

When installing on Windows we recommend installing to a folder other than \"Program Files\". Doing so will avoid any Administrative Permission errors.
*For example installing MOGD# to the desktop will avoid any of these errors.

Update: 1.1.8 4-Nov-2015-

  • Added support for one byte file IDs
  • Improved font optimization

Update: 1.1.7 26-Jan-2015-

  • Added monospacing and optimization for fonts

Update: 1.1.6 30-Jun-2014-

  • Added animation support
  • Added support for firmware revision 8.5 commands

Update: 1.1.5 31-Jan-2013

  • Extended language support for fonts
  • Code page can now be specified when generating a font

Update: 1.1.0 08-Mar-2011

  • GLK24064-25/GLT24064 PCB Rev4.0 support
  • GLK240128-25/GLT240128 PCB Rev4.0 support
  • Firmware revision is detected automatically

Graphic Software  MOGD 1.16MiB

Description

MOGD is universal software for the GLK series. It allows font and bitmap uploading as well as general testing of the displays features. This version is for GLC24064 up to 1.2, GLK24064-25 up to 1.2, GLK12232-25-WBL up to 2.0, and GLK12232-25-SM up to 1.4. For higher revisions, it is required that you use MOGD#.

Graphic Fonts  Lucida Mono 19.09KiB

Description

\"Lucida Mono\" is a 10 x 15 pixel monospaced font. It allows 21 characters per line and 4 lines on a 240 x 64 pixel display. Set font metrics to: character spacing = 1; line spacing = 1; left margin = 5; right margin = 0

Graphic Fonts  Futura 18.68KiB

Description

\"Futura\" is the 14 pixel high proportional font which is loaded as font 2 at the factory. Depending on the specific characters printed, this font allows approximately 35 characters across the screen and 4 lines of text. Set font metrics to: character spacing = 1; line spacing = 0; left margin = 0; right margin = 0

Graphic Firmware  Firmware Upgrader 100.87KiB

Description

Firmware Upgrader for intelligent graphic displays with firmware revision 8.0 or higher.

Graphic Fonts  Clean 15.88KiB

Description

\"Clean\" is a very small, but still remarkably readable proportional font designed by William Ferrell of LCDproc fame. Depending on the specific characters printed, this font allows approximately 59 characters across the screen and 9 lines of text (GLK24064-25). Set font metrics to: character spacing = 1; line spacing = 1; left margin = 0; right margin = 0

Graphic Fonts   Small Inversed Filled 16.42KiB

Description

\"Small Inversed Filled\" is the 6 x 7 pixel monospaced font. It allows 40 characters per line and 8 lines of text on a 240 x 64 pixel display or 4x20 on a 122x32 pixel display. Set font metrics to: character spacing = 0; line spacing = 0; left margin = 0; right margin = 0

Graphic Fonts   Small Filled 19.18KiB

Description

\"Small Filled\" is the 6 x 7 pixel monospaced font which is loaded as font 1 at the factory. It allows 40 characters per line and 8 lines of text on a 240 x 64 pixel display. Set font metrics to: character spacing = 0; line spacing = 1; left margin = 0; right margin = 0

Graphic Fonts   Small 17.12KiB

Description

\"Small\" is the 5 x 7 pixel monospaced font. It allows 40 characters per line and 8 lines of text on a 240 x 64 pixel display. Set font metrics to: character spacing = 1; line spacing = 1; left margin = 1; right margin = 0

Documents

  File Name Revision Size
  File Name Revision Size
EGLK19264A-7T-PL  Serial Enclosure Manual 903.24KiB
EGLK19264A-7T-MT  Serial Enclosure Manual 903.24KiB
EGLK19264A-7T-PL  -PL Enclosure Drawing 54.72KiB
EGLK19264A-7T-MT  -MT Enclosure Drawing 1.03MiB

Options Required : Select one from each

  • PCB Rev: 2.0
  • Model: EGLK19264A-7T
  • Availability: In Stock
  • $109.95USD
  • 25 or more $108.28USD
  • 50 or more $105.22USD
  • 100 or more $102.15USD
  • 500+ : Contact us

Tags: EGLK19264A-7T
