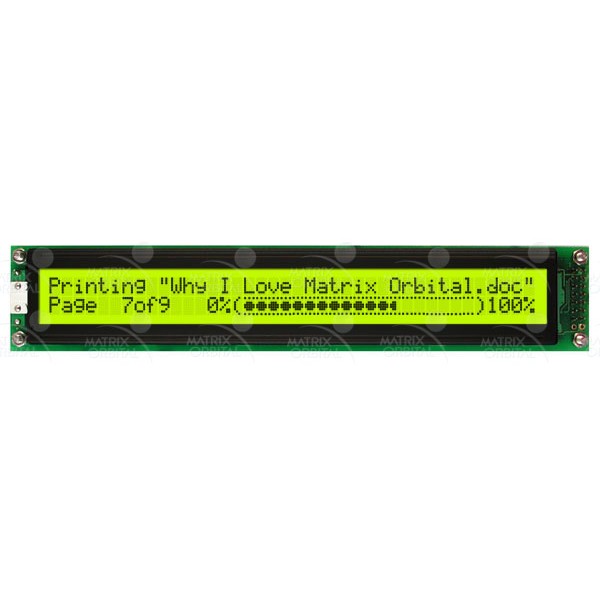

The LK402-25 is a 40x2 1U intelligent LCD display. Engineered to quickly and easily add a powerful HMI to any application. Multiple communication protocols such as Serial RS232, TTL, I2C, and USB communication modes allow the LK402-25 LCD to be connected to a wide variety of host controllers.


Our Character LCD provides you with a cost-effective industrial HMI user interface solution for that great product/project you are developing. This LCD displays features optional on-board medium digits, bar graphs all with the convenience of a 25 key matrix keypad will allow fast development for any application.

  • 40x2 1U Character LCD
  • Available Interfaces: Serial RS232, TTL, I2C, and USB
  • Two available voltage options: 5V, and Industrial 9-35V (24V)
  • 25 key matrix keypad
  • 6 General Purpose Outputs
  • Software controlled contrast and brightness with configurable time-out setting up to 90 minutes
  • Built in Horizontal or Vertical bar graphs
  • Extended temperature available for extreme environments of -20C to 70C
  • Fast and easy development
  • Designed, supported and Made in CANADA
  • Long life cycle
  • Customer headers available, please contact us
  • Semi-custom designs available
  • Long life production
  • Backed my Matrix Orbital's decades of research and development
Module
Family/SeriesIntelligent Display
Module Width (mm)182
Module Height (mm)33.5
Screen
Display TypeCharacter LCD
Backlight TypeLED
Viewing Area Width (mm)154.5
Viewing Area Height (mm)17
Active Area Width (mm)147.5
Active Area Height (mm)11.5
Resolution Width (Pixels)200
Resolution Height (Pixels)16
Pixel Pitch Width (mm)0.65
Pixel Pitch Height (mm)0.7
Pixel Width (mm)0.6
Pixel Height (mm)0.65
Character Columns40
Character Rows2
Character Pitch Width (mm)3.7
Character Pitch Height (mm)5.95
Character Width (mm)3.2
Character Height (mm)5.55
FontEuropean
Viewing DirectionTop
Viewing Angle60
HMI
TouchscreenNone
Keys25
Haptic FeedbackNone
Audio FeedbackNone
GPO's6
Advanced GPO'sNone
DOWOptional, 1
Integrated LED'sNone
Electrical
InterfaceRS232, TTL, I2C, RS422, USB
Command ProtocolMatrix Orbital
ControllerATMega164P
Negative VoltageIntegrated
Backlight DriverIntegrated
Minimum Voltage (Vdc)5
Typical Voltage (Vdc)5, 9-15, 9-35
Maximum Voltage (Vdc)35
HeaderStandard
Environmental
Min. Operating Temp. (°C)0, -20
Max. Operating Temp. (°C)50, 70
Min. Storage Temp. (°C)-30, -10
Max. Storage Temp. (°C)60, 80

Documents

 File NameRevisionSize
 File NameRevisionSize
LK402-25  Manual for LK402-25 PCB Rev3.03.02.62MiB

Description

Manual for PCB revision 3.0 of the LK402-25, LK402-25-422, and LK402-25-USB displays.

LK402-25  Autocad Drawing for PCB Revision 3.03.0467.95KiB

Description

Autocad .dwg style drawing of the LK402-25, LK402-25-422, and LK402-25-USB displays.

LK402-25  Manual for PCB revision 2.02.01.07MiB

Description

Manual for PCB revision 2.0 of the LK402-25 display.

LK402-25  Autocad drawing for PCB Revision 2.02.080.82KiB

Description

Autocad .dwg style drawing for PCB Revision 2.0 of the LK402-25 display.

LK402-25  PCN 2016-01-21-02231.86KiB

Description

Firmware v7.3 Release

LK402-25  PCN 2015-10-02-01265.75KiB

Description

40x2 Screen Change

Notes

Products Affected:

  • LK402-25
  • LK402-25 -USB
  • LK402-25 -422

LK402-25  PCN 2011-10-11-0195.5KiB

Description

Display Modules I2C Update

LK402-25  PCN 2011-06-03-01580.43KiB

Description

-V and -V-E power/temperature considerations

LK402-25  PCN 2010-08-16-01120.5KiB

Description

New MO VPT module

LK402-25  PCN 2010-03-03-01104.21KiB

Description

GLK24064-25 PCB 3.0 Release

LK402-25  PCN 2008-03-06-01101.87KiB

Description

Some G2s Upgraded Firmware

LK402-25  PCN 2007-12-11-01104.16KiB

Description

G2 Alphanumerics / Graphics Upgraded FW

LK402-25  PCN 2007-07-11-01111.46KiB

Description

G2 Alphanumerics / Graphics Upgraded FW

LK402-25  PCN 2007-02-20-01106.02KiB

Description

G2 Graphics

LK402-25  PCN 2006-08-24-09120.97KiB

Description

VFD2041 PCB 2.0 Feature Enhancement

LK402-25  PCN 2006-08-10632.99KiB

Description

LK402-25 PCB 2.0 Release

Application Notes

 File NameRevisionSize
 File NameRevisionSize
Application Notes  2D Drawing for EVE2-38G-TPC1.13.09MiB

Description

A .dwg style Drawing for the Capacitive Touch (TPC) variant of the EVE2-38G.

Application Notes  PDF Drawing for EVE2-43G-TPT PCB Revision 1.0.225.25KiB

Description

PDF style Drawing for EVE2-43G-TPC PCB Revision 1.0.

Application Notes  2D Drawing for EVE2-43G-TPT PCB Revision 1.0.2.8MiB

Description

DWG style Drawing for EVE2-43G-TPC PCB Revision 1.0.

Downloads

 File NameRevisionSize
 File NameRevisionSize
Alphanumeric Software  DisplayTunerPro v1.0.0.0 Software1.0.0.0802.25KiB

Description

Display Tuner Pro (MOCD#) is an update to our popular uProject testing software for Matrix Orbital displays.  It adds support for new features and displays, including legacy and graphic units, to our established base of features and scripting.  This tool supports all Matrix Orbital Intelligent and Economy Series displays, including the following:

  • GLK Series (GLK12232-25-SM, GLK12232-25, GLK19264-7T-1U, GLK24064-25, GLK24064R-25-1U, GLK240128-25)
  • GLT Series (GLT12232-SM, GLT24064R-1U, GLT24064, GLT240128)
  • GOK Series (GOK12232A-25-SM, GOK12832-25-SM)
  • LCD/OLED/VFD Series (LCD0821, LCD2041, OLED0821, OLED2041, VFD2041)
  • LK Series (LK162-12, LK162A-4T, LK162B-7T, LK202-25, LK204-25, LK204-7T-1U, LK402-25, LK404-25)
  • MOI/MOS/MOU Series (MOS, MOU, XBoard-S, XBoard-U)
  • OK Series (OK162-12, OK202-25, OK204-25)
  • VK Series (VK162-12, VK202-25, VK204-25, VK246-25)
  • And all Legacy Displays

Alphanumeric Software  uProject1.42MiB

Description

uProject is an advanced testing software for Matrix Orbital displays. It allows testing of nearly all the features and allows test scripting and many other advanced features.

uProject (micro Project) is a series of different tools that should allow the testing of nearly all the features of most of our displays. uProject also features

scripting abilities to speed up testing or changing of a specific feature, such as backlight brightness or contrast.



All LK/VK/PK, MOS, MX and LCD/VFD series.

Alphanumeric Software  Display Tuner407KiB

Description

This basic application allows you to test and set LCD Contrast, Brightness, VFD Brightness, set baudrate and send text to the display.

Compatible Displays:

All LK/VK/PK, MOS, MX and LCD/VFD series.

Alphanumeric Software  Custom Character Tool451.61KiB

Description

This simple program to give you hex values for custom characters.

This program allows you to see the hex values per lines for custom characters making implication easier. Simply download the program, uncompress and run. You will require Microsoft .NET Framework Version 1.1, it can be downloaded from here.


This application was written by Ray of LCD Studio. (Ray@lcdstudio.com)

For technical discussions and questions, please visit our forums

Alphanumeric Software  Boot Logo40.03KiB

Description

Boot Logo is designed for modification of the startup screen for some alphanumeric displays with startup screens.

The user has the ability to use the normal text from the display\'s font table, and the 8 custom characters.

Compatible Displays:

LK/VK/PK162-12
LK/VK/PK202-25
LK/VK/PK202-24-USB
LK/VK204-24-USB

MOS-AL/AV/AP202
MOS-AL/AV204

All MX series

This application was written by Ray of LCD Studio. (Ray@lcdstudio.com)

Alphanumeric Software  Boot Edit524.62KiB

Description

Boot Edit is designed for modification of advanced features of the LK/VK/PK USB and MX series. This is a more advanced version of the Boot Logo software.

Boot Edit allows the setting of these features:

  • Custom startup screen using custom characters
  • Power on GPO and FAN settings, such as speed, and frequency
  • LCD Contrast, backlight brightness and VFD brightness

Compatible Displays:

  • LK/VK/PK202-25
  • LK/VK/PK202-24-USB
  • LK/VK204-24-USB
  • MOS-AL/AV/AP202
  • MOS-AL/AV204
  • All MX series

Only the MX and USB series support the Edit GPO Defaults section.

This application was written by Ray of LCD Studio. (Ray@lcdstudio.com)

Available Options

  • PCB Rev: 3
  • Model: LK402-25
  • Availability: In Stock
  • $79.83USD
